Set of 2 cables for motorized garage door :
- 1 cable Ø 1.2mm, length 7m
- 1 cable Ø 1.2mm, length 1.8m with a ball at one end
- 1 crimping lead
Delivered without accessories
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")

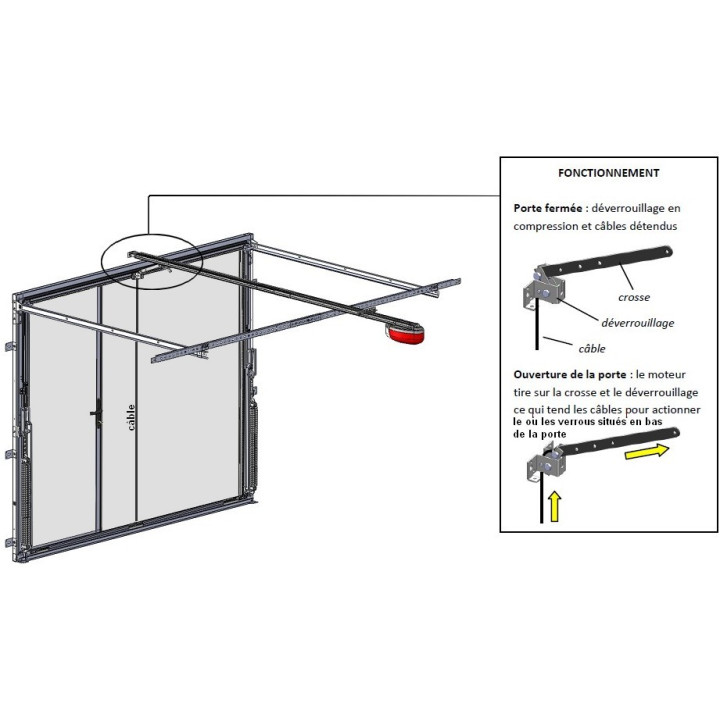

This wiring kit allows the connection of the two slam bolts (placed in each of the lower corners of the door, not supplied) with the unlocking system (placed in the upper middle of the door, not supplied). Motor action on the spring latches releases them to allow the garage door to open.
With the 5m cable, you can equip the following door sizes:
- one H2000 door up to 4.5m wide
- or a H2125 door up to 4m wide
- or a H2500 door up to 3.5m wide
|
For other door sizes, check whether the cable is long enough using the following calculation formula: Cable length = door width + [ 2x (door height - 1.8m) ] [ 2x (door height - 1.8m) The length must be less than or equal to 5m. |
