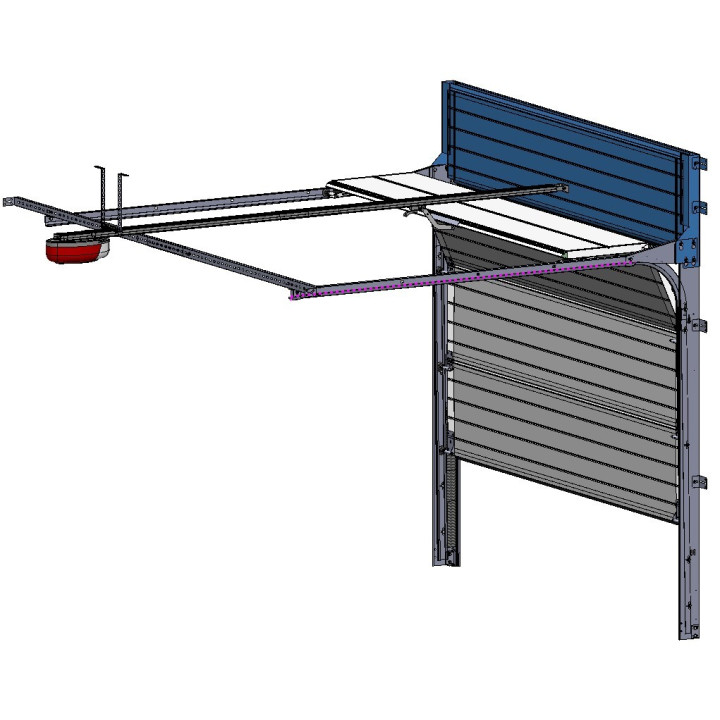

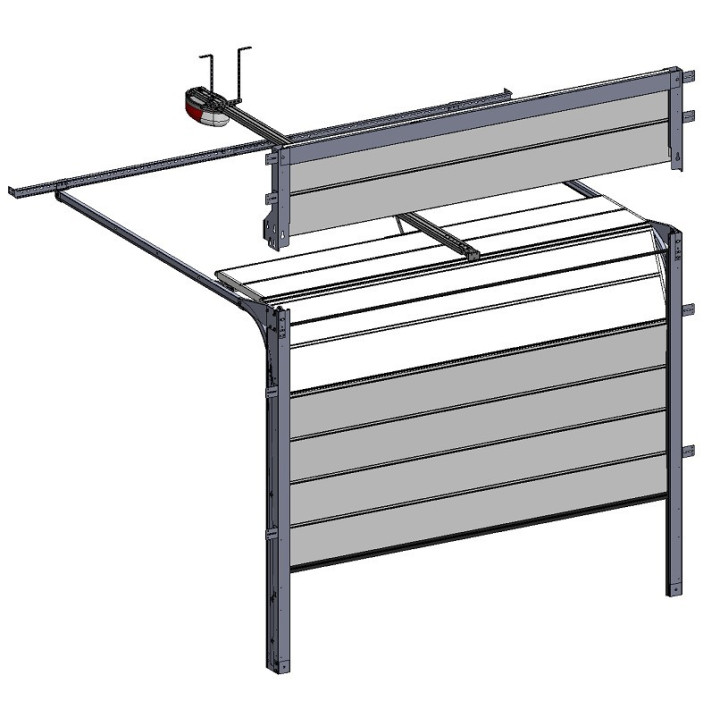

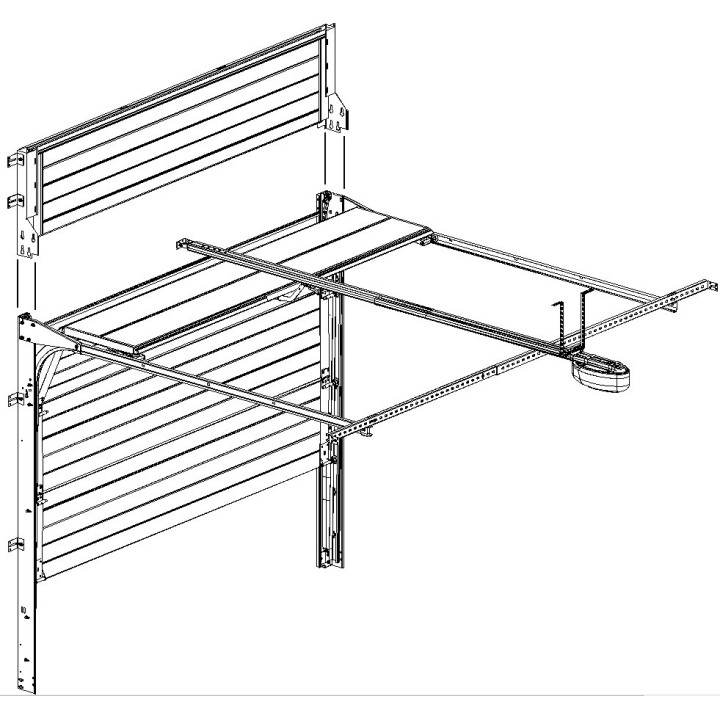

This garage door riser allows you to add a fixed panel above your door in the continuity of your jambs.
The continuous aesthetic aspect of the frame is thus respected
The fixed panel is combined with the seamless deck to create a plain deck.
Quick assembly
Insulated panel 40mm white wide groove
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Available in 2 widths 2400 / 3000 (2420mm/3020mm panel)
Available in 2 heights 500 / 1000 (1 or 2 panels of 500mm)

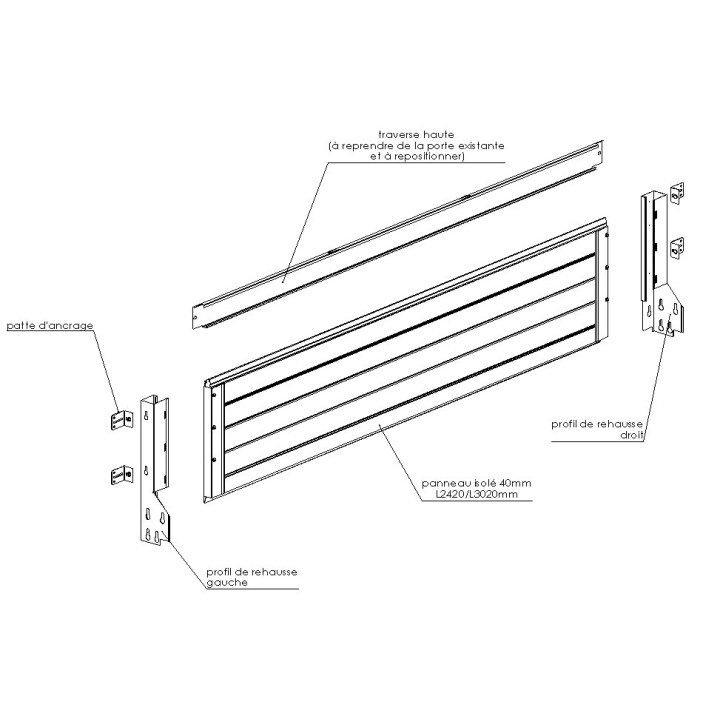

Content of the set :
- 2 riser profiles (right and left) + frame gaskets
- 1 or 2 x 2420/3020 500mm panels
- 1 U of 40mm trim (if the top of the panel is to be edged, it hides the foam) of 2420/3020mm
- 4 anchoring lugs
- 1 bag of screws (10 sheet metal screws + 4M8)

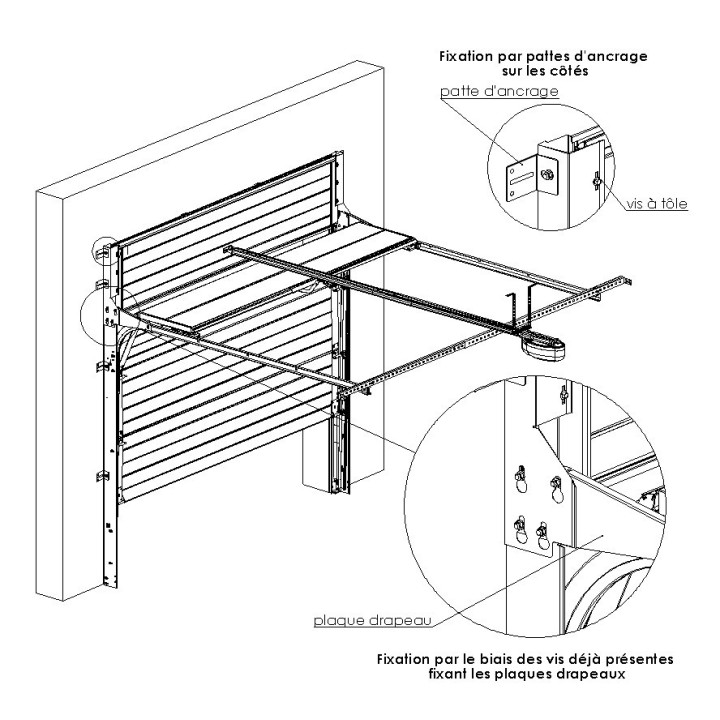

Quick installation :
the fixing is done by means of the screws already present on the flag plates and the rest fits on the top of the uprights

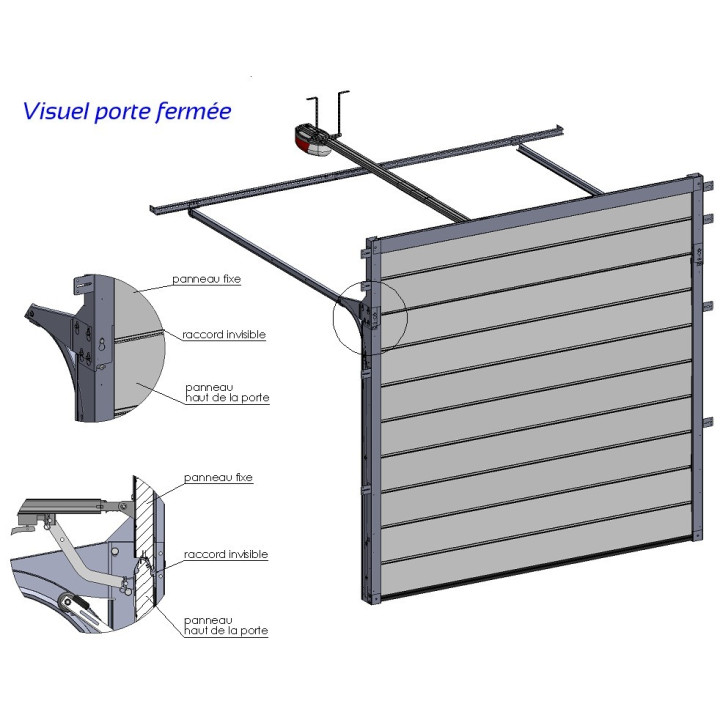

Aesthetic aspect :

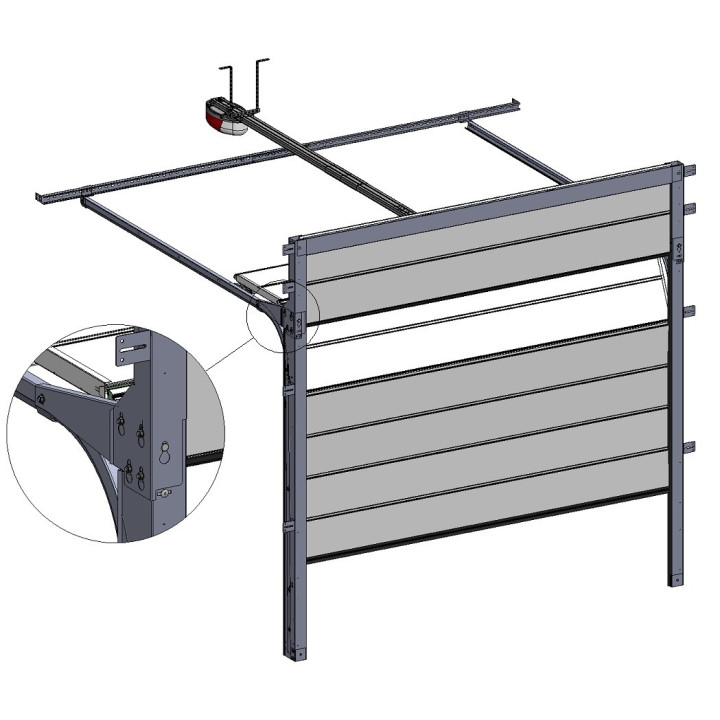

Seen from the outside, the connection between the top of the panel and the fixed panel is invisible.
The original high crossbar is designed to be lifted up to the top of the riser.
